Solar Powered Attic Fan
Tilt Series
The Solaro Aire™ Solar Powered Attic Fan – Tilt Series comes with an adjustable 20 watt or 30 watt solar panel, perfect for any installation that requires directing the panel towards the sun for better performance. 360° rotation and 35° tilt make it perfect for less than ideal fan locations. Comes in high or low profile flashings for all types of roofing materials, and an aluminum fan blade (Brushless DC Motor) for adequate air flow. A Thermostat is optional with each of the Solaro Aire™ models.
Models
SA-20WT-HPE
- 20 watt solar panel
- High profile 24″ round base
- Aluminum fan blade
- Brushless DC motor
- Up to 900 CFM / Up to 1250 sq. ft.

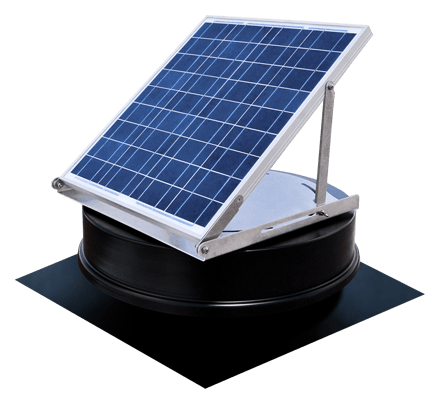

SA-20WT-LPE
- 20 watt solar panel
- Low profile 24″ square base
- Aluminum fan blade
- Brushless DC motor
- Up to 900 CFM / Up to 1250 sq. ft.

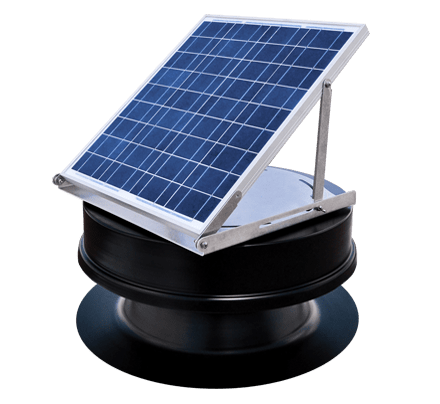

SA-30WT-HPE
- 30 watt solar panel
- High profile 24″ round base
- Aluminum fan blade
- Brushless DC motor
- Up to 1200 CFM / Up to 1600 sq. ft.
SA-30WT-LPE
- 30 watt solar panel
- Low profile 24″ square base
- Aluminum fan blade
- Brushless DC motor
- Up to 1200 CFM / Up to 1600 sq. ft.
Components

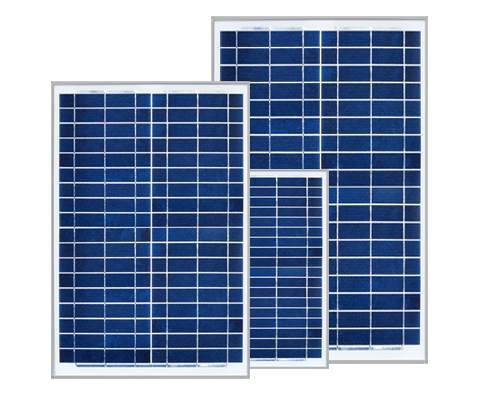

Solar Panel
20 or 30 Watt High Efficiency Multicrystalline PV Module – Nominal 12V DC for standard output solar panel. Weather proof in the most severe conditions, has a high transparent low-iron tempered glass, and is built for maximum performance and safety.

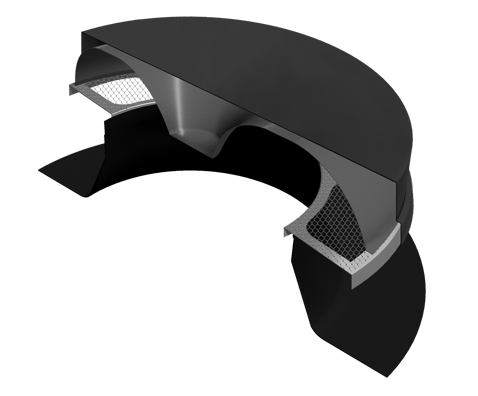

Fan Housing
The housing system is aerodynamically designed to produce the highest possible radial air exhaust, powder coated aircraft grade spun-formed aluminum for quality, and high tempered stainless steel mesh screen & mounting hardware for maximum strength.
Aluminum Fan Blade
This 12 in. - 5 blade, aluminum fan was specifically designed for the Solaro Aire™. Each blade is dynamically balanced for maximum airflow, controlled by our high-performance brushless DC motor (protection class IP54), specially designed to operate on solar.
Brushless Electronic Motor with Maximum Yield Technology. This new motor technology was developed by Solaro Energy – Our engineers leveraged lessons learned from our original brushless electronic motor that we used for over 12 years. This new motor technology offers about 30% better efficiency and air moving performance, with an amazing 100,000 hours average motor run time! That’s about 25 years of system operation time!
Additional Information:
Tax Credits
The Solaro Aire™ is eligible to receive a 30% Federal Tax Credit on both the cost of the product & installation.
Locate A Dealer
We have Solaro Authorized Dealers located all throughout the United States, as well as in some foreign countries.
Warranties
Download information about Solaro Energy’s warranties, and register your product today with our online form.
FAQs
Learn all you need to know about Solar Lighting and Solar Attic Ventilation with our frequently asked questions.
- Solar Energy Inc. sells directly to customers and approved dealers. Any Solaro products available for purchase online are likely to be counterfeit. If you would like to make a purchase, please call our office number 1-888-355-5SUN or purchase a product from a qualified dealer.
